◆ Adopting high-strength body structure,with small deformation and high accuracy.
◆ The slider adopts a hexagonal guide path with two corners, and the slider guide adopts a "high-frequency quenching" and "rail grinding process",which has low wear,high accuracy,long accuracy retention time,and improved mold service life.
◆ The crankshaft is made of high-strength alloy material 42CrMo,which is 1.3 times stronger than 45 steel and has a longer service life.
◆ The copper sleeve adopts tin phosphorus bronze ZQSn10-1,which has a strength 1.5 times higher than ordinary BC6 brass.
◆ Adopting a highly sensitive hydraulic overload protection device can effectively protect the service life of the punching machine and mold.
◆ Equipped with bearings and Japanese NOK seals as standard.
◆ Standard imported 15.6-inch touch screen. Optional mold pad (air cushion).

性能特點二  Features 2

◆ 內置9種加工模式，每種產品可以選擇適合的加工曲線進行部件加工，從而實現高精度、高節能。
◆ 與傳統沖床相比，結構簡單、機械傳動效率高、維護成本低等特點。
◆ 可根據產品/材料的特性，在材料加工的時候降低沖床成型速度，達到產品/材料成型的速度。從而減小振動，降低沖壓的噪音；提高產品的精度，延長模具的使用壽命。
◆ 可根據不同的產品，需要不同的高度，可以任意設置沖床的行程，大大縮短了沖壓的時間，提升效率。

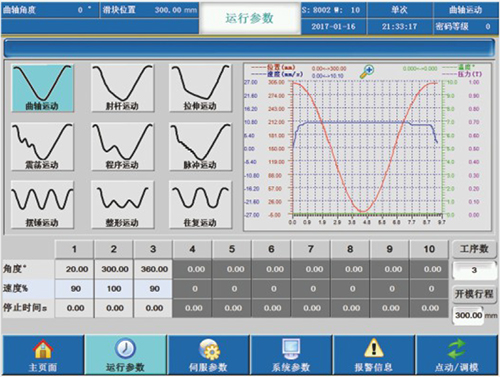

◆ Built in 9 processing modes,each product can choose the most suitable processing curve for component processing,achieving high precision,high efficiency,and high energy conservation.
◆ Compared with traditional punching machines,it has the characteristics of simple structure,high mechanical transmission efficiency,and low maintenance cost.
◆ According to the characteristics of the product/material,the forming speed of the punch can be reduced during material processing to achieve the optimal forming speed of the product/material.Thereby reducing vibration and reducing stamping noise;Improve the accuracy of the product and extend the service life of the mold.
◆ According to different products and different heights,the stroke of the punching machine can be set arbitrarily,greatly shortening the stamping time and improving efficiency.
